2022–2026·Boulder / Denver, CORobotics & HardwareML & CV

Rooted Robotics

Co-Founder & CTO

From first principles to shipped product.

Coming out of the PhD I wanted to work on problems with more immediate utility, and applied to aerospace, quantum-computing, and photonics positions. The interview processes took so long that in the meantime I started working with a friend on his robotics project — designing automation for indoor agriculture. I wrote a grant to the USDA to try to solve the labor-cost problem in controlled-environment agriculture, and won it.

The case for growing indoors is compelling: almost no water consumption, no pesticides, year-round growing. But CEA is extremely labor-intensive, because there is almost no automation designed specifically for the industry. I leveraged that grant to raise private capital, and that became Rooted Robotics. By the time the aerospace and quantum-computing offers arrived I already had $750K in funding and the company had too much momentum to back out, so I turned the offers down to see how far I could go on my own.

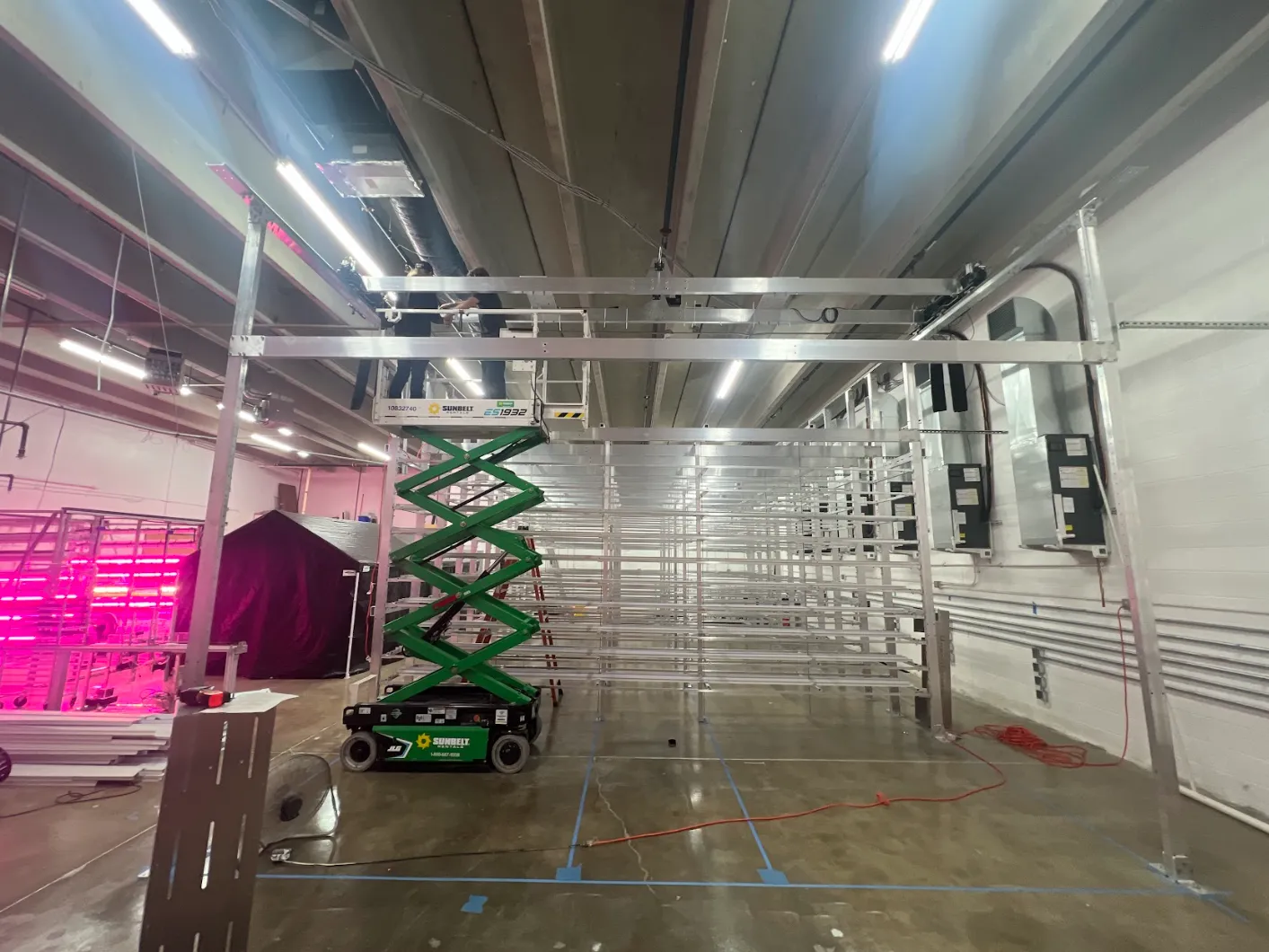

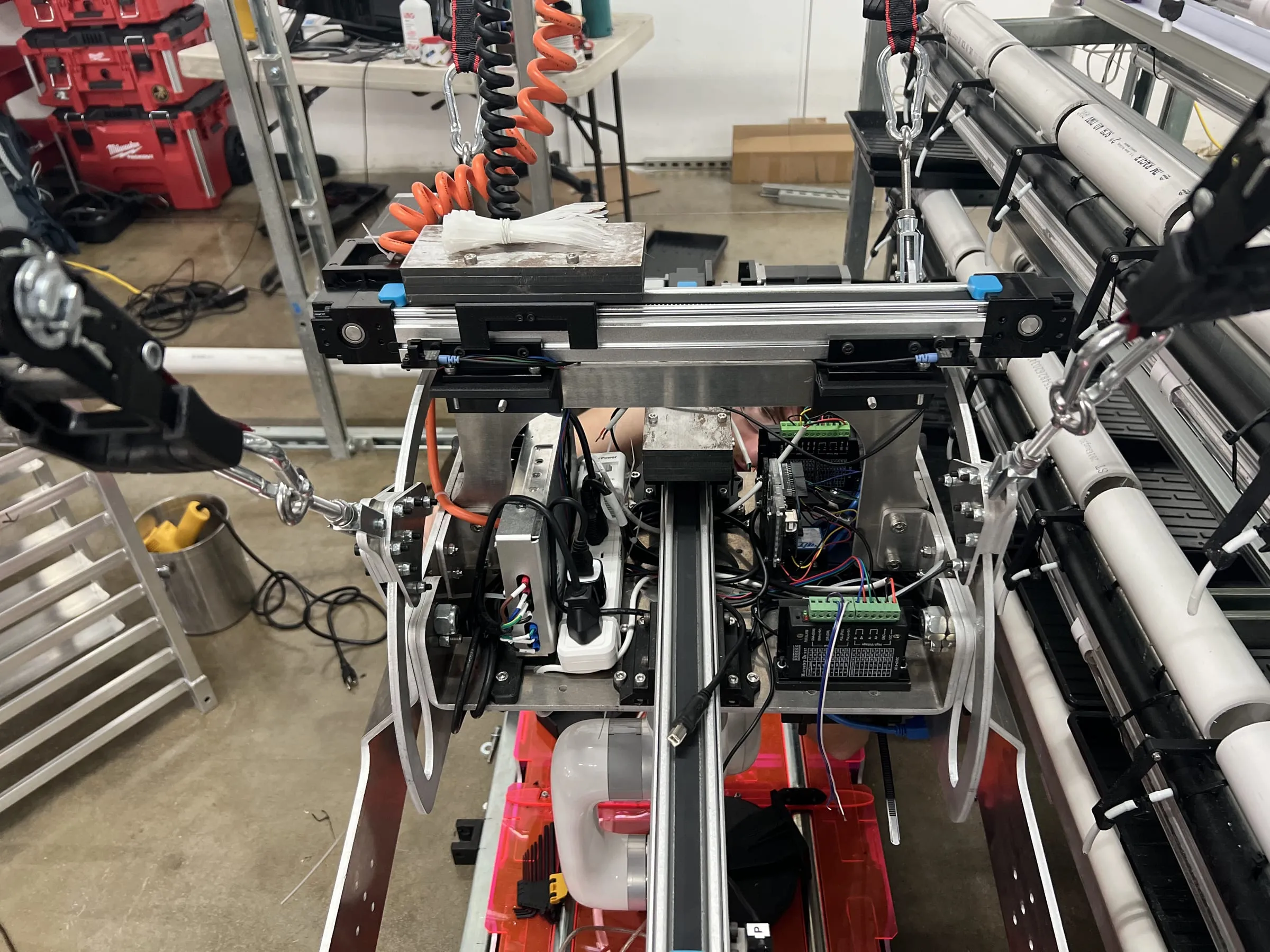

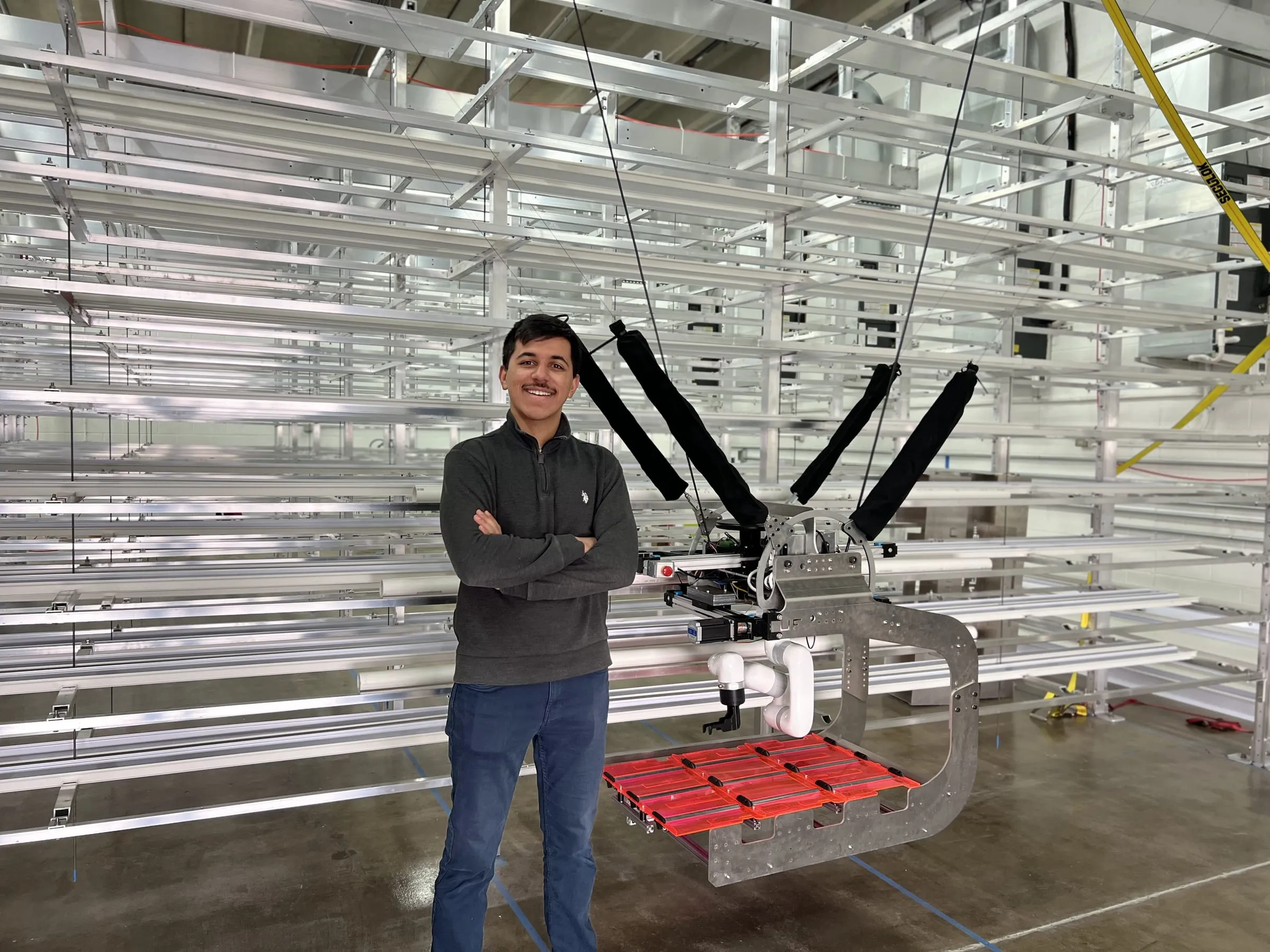

The first system we built was an overhead gantry-driven robot that used cables to navigate within a plane and the gantry to move between planes — each plane a shelf of plants growing in hydroponic trays. It was a difficult system to design, because every time the robot interacted with a tray or a shelf it induced swinging into the whole structure. I built an inertial mass dampener to cancel those vibrations: weights driven along a linear rail from inertial-measurement-unit data fed into a PID control loop.

That project is also what introduced me to computer vision and neural networks. The robot needed to locate the plants and the racks before it could plant or harvest, and from there I learned to train networks to detect plant growth and predict harvest dates.

The system worked. It genuinely replaced manual labor — a person on a scissor lift picking plants by hand. But growers were reluctant to buy it, because it required them to change their entire growing process and the infrastructure of their farm. What they asked for instead was automation that integrates into the processes they already have, with no expensive changes: high throughput, robust and simple designs they could maintain without a specialist visiting the farm. They wanted seeding, harvesting, and washing automated.

That is why we changed the product line to the machines on this page. We made the pivot in the fall of 2024, and the market responded immediately — adopting the technology and giving us more business than I could handle alone. To meet the demand I scaled up the engineering team, bringing on interns and hiring full-time mechanical and software engineers.

Since starting the company we have grown to $1.1M in annual realized revenue at an average margin of 60%, with machines across the US, Canada, the Caribbean, Europe, and Asia, and CE certification for the line. We are now negotiating an acquisition with one of the largest players in the industry, and expect to finalize it before 2027.

$0→$1.1M
Annual revenue
$1.2M
Raised
8
Product lines developed
3
Patents pending

What I did

  • Sole designer of all mechanical & electrical systems across eight automation product lines — a tabletop seeder and harvester, a tray washer, a channel washer, and a gel-media filler, plus conveyor-integrated seeding, washing, and harvesting concepts.
  • Wrote all machine firmware and motion-control software in Python and C++ — closed-loop control of DC/servo/stepper motors, conveyors, linear actuators, and vision-guided pick-and-place.
  • Deployed production CV/ML pipelines (Intel RealSense, OAK-D Pro, YOLO V5, AWS Rekognition, Azure Vision) for crop QC, yield prediction, and automated harvesting.
  • Built the company's full manufacturing process, inventory system, and QC protocols from scratch — and personally built every prototype and shipped unit.
  • Raised $1.2M (USDA SBIR + private investors); led a 5-engineer team with sole hiring authority and a CU Boulder intern-to-hire pipeline.
  • Owned major partnerships — the Siemens Small Business Accelerator, plus distributor relationships in France and Spain closed through Spanish-language negotiations.
  • CE certified to Machinery Directive 2006/42/EC; 3 patents pending.

Projects

CEA Automation Product Line

Co-Founder / CTO

Sole designer of eight automation product lines — tabletop seeder, tabletop harvester, tray washer, channel washer, and gel-media filler, plus conveyor-integrated concepts. Owned mechanical, electrical, PCB, and enclosure design across the entire line.

$0→$1.1M revenueCE certified
Robotics & Hardware

Vision-Guided 6-Axis Harvesting Arm

Rooted Robotics

A 6-axis robotic arm that locates and picks produce using depth-camera vision — custom end effectors, closed-loop motion control, and a perception pipeline running on the edge.

ROS/ROS2 · MoveIt · Pick-and-place
Robotics & HardwareML & CV

Production CV/ML Pipelines

Rooted Robotics

Vision pipelines on Intel RealSense and OAK-D Pro depth cameras with YOLO V5, AWS Rekognition, and Azure Vision — driving crop quality control, yield prediction, and vision-guided harvesting on custom on-site datasets.

YOLO V5 · PyTorch · Edge deploy
ML & CVRobotics & Hardware

Firmware & Motion-Control Stack

Rooted Robotics

All machine firmware in Python and C++ — closed-loop position and velocity control across DC, servo, and stepper motors, conveyors, and linear actuators, bridged from HMI to ClearCore and Siemens controllers.

CAN · Modbus · EtherCAT · Profinet
Robotics & Hardware

Customer Web App & Fleet Dashboard

Rooted Robotics

A Django web application for customers plus a remote dashboard for the deployed machine fleet — live status and logs streamed from Raspberry Pi controllers over Tailscale, hosted on Vercel and AWS.

Django · Vercel · Tailscale · AWS
Robotics & Hardware

The machines

Interactive 3D models of the hardware I designed end to end. Drag to orbit, scroll to zoom.

drag to orbit · scroll to zoom

Tabletop Seeder

Automated tray seeding — singulates and drops seed at high throughput.

  • Mechanical + PCB + firmware
  • CE certified
drag to orbit · scroll to zoom

Tabletop Harvester

Bench-scale automated harvesting of tray-grown crops.

  • Closed-loop motion control
  • Custom end effectors
drag to orbit · scroll to zoom

Tray Washer

Automated wash-and-sanitize station for grow trays.

  • Sole mechanical + electrical design
  • Production-deployed
drag to orbit · scroll to zoom

Push-Through Washer

High-throughput continuous tray washer.

  • Full mechanical design
drag to orbit · scroll to zoom

Channel Washer

Inline wash-and-sanitize for hydroponic grow channels.

  • Conveyor + spray manifold
  • Full mechanical design
drag to orbit · scroll to zoom

Gel Media Filler

Precision dispensing of gel growth media into trays.

  • Metered dosing
  • Mechanical + firmware
drag to orbit · scroll to zoom

Conveyor-Mount Seeder

Inline seeder integrated onto a roller conveyor line.

  • Conveyor-integrated
  • Full mechanical design
drag to orbit · scroll to zoom

Roller-Conveyor Harvester

Conveyor-fed automated harvesting station.

  • Conveyor-integrated
  • Full mechanical design

In action

The machines and the computer vision running — from the pitch reel. Click any clip to play.

CV-driven

Six-Axis Transplanter & Gantry Harvester

A vision-guided six-axis arm on a linear-rail gantry that transplants seedlings and harvests produce — driven end to end by an overhead depth camera and a real-time perception pipeline (detect → localize → pick).

Computer vision

Plant Growth Analysis & Classification

Computer vision for crop quality — leaf-area heatmaps, growth tracking, and per-plant classification from the grow-room cameras, feeding yield prediction and harvest decisions.

Deployment

CEA Automation Integration — Liv Farms

Integrating the automation line into a commercial controlled-environment-agriculture facility — machines, conveyors, and controls wired into a working production flow.

Overview

The Product Line

The shipped product line at a glance — seeders, harvesters, and washers in action.

Gallery

Click any image to enlarge. Use ← → to move through the set.
